IDB

Under sill induction unit in nominal lengths of 600, 900, and 1200 mm, with vertical heat exchanger and condensate drip tray



Under sill induction unit with 2-pipe or 4-pipe heat exchanger, of compact height, for installation under a sill or on a wall. The condensate drip tray is useful if the temperature temporarily falls below the dew point.

  • High heating and cooling capacity with a low conditioned primary air volume flow rate and low sound power level
  • High comfort levels due to low airflow velocity in the occupied zone
  • Four nozzle variants to optimise induction based on demand


Optional equipment and accessories

  • Control package
  • Lint screen to protect the heat exchanger from contamination
  • Powder coating in many different colours, e.g. RAL CLASSIC or NCS

Application

Application

  • Induction units of Type IDB for installation under a sill or on a wall
  • 2-pipe or 4-pipe heat exchangers enable good comfort levels with a low conditioned primary air volume flow rate
  • Energy-efficient solution since water is used as a medium for heating and cooling
  • Inducing displacement flow

Special characteristics

  • Supply air discharge as inducing displacement flow
  • Vertical heat exchanger as 2-pipe or 4-pipe system, optional condensate drip tray including condensate drain that can be connected to a condensate pipe (to be provided by others)
  • Water connection at the narrow side, Ø12 mm Cu pipe, either with plain tails or with G½" external thread and flat seal

Description

Construction

  • Galvanised
  • P1: Powder-coated RAL 9005, black, gloss level 70 %

Accessories

  • Lint screen
  • Wall and floor fixing
  • Condensate drip tray

Useful additions

  • Connecting hoses
  • Control equipment consisting of a control panel including a controller with integral room temperature sensor; valves and valve actuators; and compression couplers

Construction features

  • Spigot is suitable for circular ducts to EN 1506 or EN 13180
  • Four nozzle variants to optimise induction based on demand

Materials and surfaces

  • Casing, primary air plenum and feet made of galvanised sheet steel
  • Heat exchanger with copper tubes and aluminium fins
  • Lint screen made of stainless steel
  • Exposed surfaces either untreated or powder-coated black (RAL 9005)
  • Heat exchanger also in black (RAL 9005)

Información técnica

  • Function
  • Technical data
  • Quick sizing
  • Specification text
  • Order code
idb

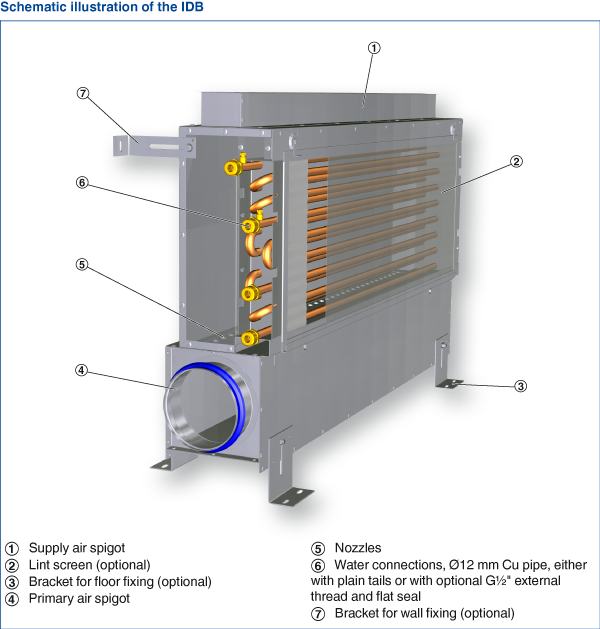

Functional description

Under sill induction units provide centrally conditioned primary air (fresh air) to the room and use heat exchangers for cooling and/or heating.

The primary air is discharged through nozzles and induces secondary air (room air), which passes through the heat exchanger.

Primary and secondary air mix and are then supplied to the room as an inducing displacement flow.

idb
idb
idb
idb_2



Induction units of Type IDB, for under sill or wall installation, with one-way discharge and high thermal output, providing high thermal comfort levels.

For installation under the sill or on a wall.

The units consist of a casing with a primary air plenum, spigot, non-combustible nozzles, and vertical heat exchanger; a condensate drip tray is optional.

Special characteristics

  • Supply air discharge as inducing displacement flow
  • Vertical heat exchanger as 2-pipe or 4-pipe system, optional condensate drip tray including condensate drain that can be connected to a condensate pipe (to be provided by others)
  • Water connection at the narrow side, Ø12 mm Cu pipe, either with plain tails or with G½" external thread and flat seal

Materials and surfaces

  • Casing, primary air plenum and feet made of galvanised sheet steel
  • Heat exchanger with copper tubes and aluminium fins
  • Lint screen made of stainless steel
  • Exposed surfaces either untreated or powder-coated black (RAL 9005)
  • Heat exchanger also in black (RAL 9005)

Construction

  • Galvanised
  • P1: Powder-coated RAL 9005, black, gloss level 70 %

Technical data

  • Nominal length: 1200 mm
  • Primary air volume flow rate: 4 – 40 l/s or 14 – 144 m³/h
  • Cooling capacity: up to 950 W
  • Heating capacity: up to 470 W
  • Max. operating pressure: 6 bar
  • Max. operating temperature: 75 °C
idb
